Cost to Replace a Railroad Tie Retaining Wall
Published national cost guides put the price of replacing a railroad tie retaining wall at roughly $20 to $50 per square foot of wall face to rebuild in timber, including tearing out and disposing of the old ties, and about $30 to $75 per square foot if you replace it with concrete block or stone (HomeGuide timber and railroad tie wall cost guide, March 2026). Where your wall lands in that range depends mostly on how hard the old ties are to get out, how tall the new wall is, what it has to hold up, and how much drainage it needs.
These are national published figures, not George Hardscaping prices, and North Shore labor and material costs can sit above or below them. Use them to judge whether a quote is in a sensible range and to see which line items belong in it.
The published numbers for replacing a tie wall
Retaining walls are usually priced by the square foot of wall face: length times height. A wall 50 feet long and 3 feet tall is 150 square feet.
| Line item | Published national range | Source |
|---|---|---|
| Replace a timber or tie wall with new timber, including demolition and disposal | $20 to $50 per sq ft | HomeGuide, 2026 |
| Replacement wall in concrete block or stone | $30 to $75 per sq ft | HomeGuide, 2026 |
| Demolition and removal of the old wall | $500 to $2,500 | HomeGuide, 2026 |
| Drainage system (gravel, pipe, fabric) | $200 to $1,500 | HomeGuide, 2026 |
| Permits and engineering, when required | $200 to $1,500 | HomeGuide, 2026 |
| Structural engineer, hourly | $100 to $220 per hour | HomeGuide repair guide, 2025 |
Worked example, using those rates only (not a quote): a 150 square foot wall at $20 to $50 per square foot comes to about $3,000 to $7,500 rebuilt in timber. The same wall at $30 to $75 per square foot comes to about $4,500 to $11,250 in block or stone. The guide lists removal of the old wall as a separate $500 to $2,500 item, so ask any contractor whether removal and disposal are inside their per-foot price or added on top.
Where a North Shore job tends to land in that range: several of the cost drivers below are common here. Ground is often rocky or has ledge, old ties can't go to a Massachusetts landfill, freeze and thaw make full drainage worth paying for, and many tie walls sit in backyards a machine can't easily reach. A job with several of those, or with a load above the wall, will usually price toward the upper part of the range. A short garden wall on open, easy-to-reach ground with nothing above it sits nearer the lower end.
What makes one tie wall cost more to replace than another
Two walls of the same size can price very differently. These are the things that move the number.
Getting the old ties out
A tie wall is rarely just a stack of timbers. Many were built with "deadmen," ties laid back into the hill to anchor the face, plus spikes or rebar pinning the courses together. Rotten ties break apart instead of lifting out in one piece, and the soil behind them can slump once the face comes off. The more of the wall that is buried or anchored, the more digging it takes before any new wall goes in.
Height, and whether the wall needs a permit or an engineer
Height drives cost faster than length. In Massachusetts, the residential building code exempts a retaining wall from a building permit only if it is not over four feet tall, measured from the bottom of the footing to the top of the wall, and is not supporting a surcharge such as a driveway, parking area or slope above it (780 CMR, Massachusetts Residential Code, R105.2). The model residential code that Massachusetts builds on also calls for an engineered design once a wall holds back more than 48 inches of unbalanced soil (International Residential Code R404.4). Measured from the footing, a wall that looks like 3.5 feet above grade can already be over four feet. Check your exact case with your town's building department before you price anything.
Height also changes how a block replacement is built. Taller segmental block walls, and walls with a load above them, are usually built as reinforced walls: layers of geogrid, a plastic grid, are laid between the block courses and run back into compacted fill behind the wall. Industry design guidance calls for grid at least 60 percent of the wall height long, and never less than 4 feet (Concrete Masonry and Hardscapes Association, SRW-TEC-004). That means digging farther back into the slope and bringing in more fill, so expect a reinforced wall to show more excavation and material on the quote than a short gravity wall.
Drainage the old wall never had
Many older tie walls were built with soil packed straight against the wood and no drain at all. A replacement wall needs free-draining stone behind it and, in most cases, a perforated pipe that carries water out to daylight. Wet soil behind a wall pushes harder, and in a Massachusetts winter that water freezes and thaws over and over. Check that each quote prices the drainage stone, the pipe and the outlet; it is an easy item to leave out.
Access to the wall
If a small excavator and a truck can reach the wall, the work goes faster. A backyard wall behind the house, a narrow side yard or a steep lot can mean moving ties, soil and new material by hand or with smaller machines, which adds labor hours.
Soil, ledge and what is above the wall
Rocky ground and ledge, which are common on the North Shore, can slow digging. A driveway, patio, shed or house near the top of the wall adds load, which usually means a heavier design and, as above, a permit regardless of height.
The replacement material
Timber is the cheapest to rebuild with. Block, natural stone and boulders cost more up front and last longer. The next sections show the published ranges.
Removing and disposing of creosote-treated ties in Massachusetts
Old railroad ties were usually treated with creosote, a coal tar preservative. The U.S. EPA says creosote-treated wood reused around homes is not regulated under federal pesticide law and can usually go out with ordinary trash, but that rules vary by state and town. It is clear on one point: do not burn creosote-treated wood, because the smoke and ash can carry toxic chemicals (EPA, Creosote, updated December 2025).
Massachusetts adds its own rule. Treated and untreated wood have been banned from Massachusetts landfills since 2006 under the state's waste disposal bans (MassDEP waste disposal bans; RecyclingWorks Massachusetts summary). In practice that means old ties go to a facility that accepts wood waste rather than being tossed in a regular load for the landfill. Your town transfer station or a licensed hauler can tell you where treated wood goes locally and what it costs.
For budgeting, three practical points:
- Ask for tie removal and disposal as its own line on the quote, so you can see it and compare it.
- Don't reuse the old ties for raised vegetable beds or play areas. Cost guides such as HomeGuide advise keeping creosote ties away from edible gardens, water and places children and pets play.
- Wear gloves and long sleeves if you move any ties yourself, and wash up afterwards.
How the replacement material changes the price
This is the published installed cost of each wall type on its own, before removing the old wall, with the typical lifespan the same guide gives.
| Wall material | Installed cost per sq ft (national) | Typical lifespan (published) |
|---|---|---|
| Railroad ties | $15 to $30 | 20 to 30 years new; 15 to 20 years used |
| Pressure-treated timber (6x6) | $20 to $35 | 15 to 25 years |
| Concrete block (CMU) | $20 to $45 | 50+ years |
| Interlocking concrete block | $25 to $55 | 50+ years |
| Boulder | $25 to $55 | 75+ years |
| Natural stone | $35 to $75 | 75+ years |
Source: HomeGuide wood and timber retaining wall cost guide, March 2026. Lifespans are the guide's estimates and depend heavily on drainage and how the wall was built.
The cheapest option today is not always the cheapest over time. A new timber wall puts you back where you started in 15 to 25 years. If you are weighing block against stone or boulders for the look, the footprint and your site, our guide to replacing railroad ties with stone compares them in detail.

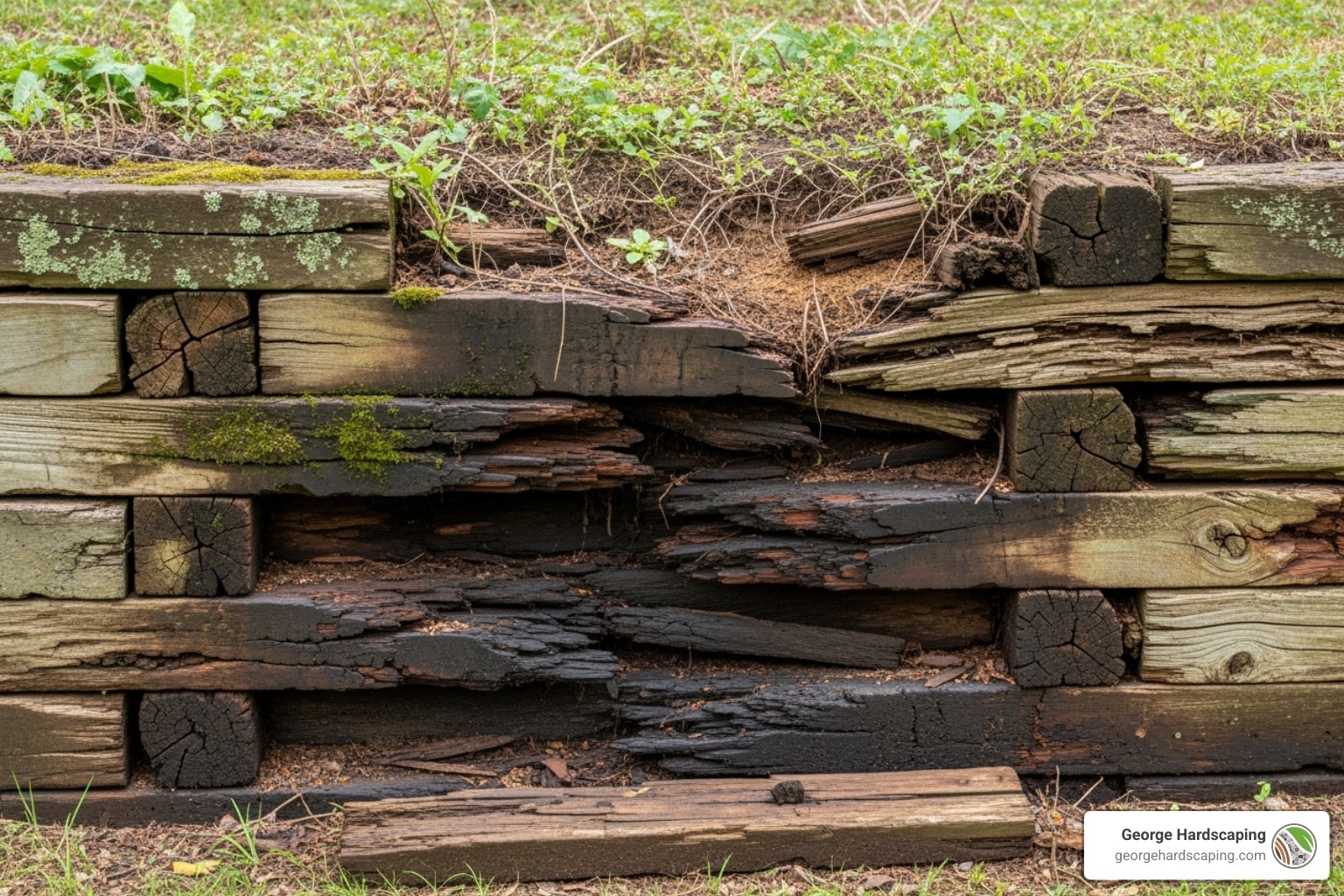

How long railroad tie walls last, and when replacing beats patching
The same guide gives new railroad ties about 20 to 30 years and used ties 15 to 20, and says a tie wall without proper drainage can last as little as 7 to 10 years (HomeGuide, 2026). If your wall was built with secondhand ties decades ago, it may already be past that.
Swapping out one or two rotten ties can buy time on a short garden wall that is still standing straight. Replacement usually makes more sense when you see:
- Soft, crumbling ties in several courses, not just one
- The wall leaning forward or bulging in the middle
- Gaps opening between ties and soil washing out through them
- Rotten deadmen, which you often only find when you dig
- Water pooling behind or at the base of the wall
If you are only trying to price a fix to a section, our guide to retaining wall repair costs covers repair ranges and the repair or rebuild decision.
When to stop and call a professional: if the wall is over about four feet, holds up a driveway, parking area or building, or is leaning toward a path, patio or house, don't pull ties out yourself. Taking the face off a loaded wall can let the soil behind it slide. Have a contractor, and where needed an engineer, look at it first.
How to get replacement quotes you can compare
Quotes for the same wall can differ by thousands of dollars because they describe different jobs. Before you compare prices, make sure each one spells out:
- The wall's length and height, and whether height is measured from the footing or from the ground
- Removal of the old ties and deadmen, and how and where they will be disposed of
- The new material, and whether the price is per square foot, per linear foot or a total
- Drainage: the stone behind the wall, the pipe, and where the water will outlet
- Whether a permit or engineered design is needed, and who is getting it
- Restoring the lawn or beds disturbed by the work
Before anyone digs, Massachusetts law requires notifying Dig Safe (call 811) at least 72 hours ahead, not counting weekends and holidays, so buried utility lines can be marked (Massachusetts Dig Safe law, M.G.L. c. 82, s. 40).
