Retaining Wall and French Drain: 4 Steps to Stability

The Unseen Enemy of Your Landscape

Image metadata: Context—residential retaining wall with active French drain installation; Subject—trench behind wall, non-woven geotextile fabric, perforated pipe, angular gravel; Purpose—illustrates core drainage components and placement; Format—JPEG; Resolution—suitable for web; Location—representative of Essex County, MA conditions.

A retaining wall and French drain work in tandem to prevent water damage and ensure structural integrity. If you’re planning a drainage system for your retaining wall, here’s the essential information you need, expanded with local best practices and authoritative guidance.

Quick Answer:

• Why it matters: Water buildup (hydrostatic pressure) behind retaining walls is the primary cause of cracking, bulging, and eventual collapse. Saturated soil can weigh up to 20% more than dry soil, multiplying lateral pressure.
• What you need: A system including a 4-inch perforated pipe, non-woven geotextile filter fabric rated for subsurface drainage, and a minimum 12 inches of clean angular gravel (1/2–3/4 inch) directly behind the wall.
• How to install: Dig a trench behind the wall (below the base elevation), line with fabric, place the pipe with a 1% slope, surround it with clean gravel, wrap the “burrito” with fabric, and backfill/compact in lifts.
• Key takeaway: All retaining walls, even those under 2 feet, require drainage. The system must discharge water safely away from structures and property lines, with a daylight outlet, dry well, or approved storm connection.

You’ve likely seen the signs in your neighborhood: a retaining wall leaning, marred by widening cracks, or showing powdery white stains. These are not cosmetic issues—they are the visible symptoms of a serious underlying problem.

Water is the silent killer of retaining walls. With every rainfall, the soil behind your wall becomes heavier and exerts greater lateral force. Without a controlled escape route, trapped water builds hydrostatic pressure that relentlessly pushes on the wall. In Essex County, MA, heavy rain events combined with winter freeze–thaw cycles magnify this risk. When water inside soil or hairline cracks freezes, it expands and pries materials apart, accelerating structural deterioration season by season.

The proven solution is proactive drainage. A properly designed French drain intercepts groundwater, relieves hydrostatic pressure, and stabilizes the soil mass retained by the wall. Whether you’re planning a new build or improving an existing wall, pairing your structure with robust drainage is the single most effective step you can take to protect it long-term.

Planning a new wall? See our landscape retaining walls expertise for integrated design and installation that includes drainage from day one: landscape retaining walls.

Stronger CTA: Ready to stop water damage before it starts? Schedule a site assessment today and get a tailored drainage design for your property: request an estimate.

Why Proper Drainage is Non-Negotiable for Retaining Walls

For any retaining wall—from a small garden edge to a multi-tiered slope—drainage is the foundation of stability. Neglecting it is the number-one cause of failure. In our region’s climate, sustained rains, wet springs, and repeated freeze–thaw cycles demand systems that actively collect and redirect subsurface water.

What hydrostatic pressure really does:

• It increases lateral earth pressure far beyond what the wall was designed to resist. Water fills voids in the soil, raising pore water pressure; the effective stress that would otherwise stabilize the soil is reduced, making it easier for the soil mass to push outward.
• It promotes differential movement. Pockets of saturated soil exert uneven forces, causing bulges or localized rotations.
• It accelerates material decay. In masonry and concrete, moisture movement can transport salts to the surface (efflorescence) and, in cold weather, drive freeze–thaw damage internally.

Recognizable warning signs:

• Leaning or bulging anywhere along the face
• Step or vertical cracks that widen after storms
• Persistent damp staining and white, powdery efflorescence
• Soggy grades or pooling at the base; a dry outlet after rain (sign of blockage)

Why drainage protects your investment:

• It relieves hydrostatic pressure so the wall only resists soil loads, not water loads.
• It improves soil performance by lowering the water table immediately behind the wall.
• It extends system life by limiting freeze–thaw cycling and reducing chemical transport that causes efflorescence.

If you want a deeper technical perspective on how walls are designed to handle earth and water loads, the federal guidance on reinforced soil and retaining structures offers an excellent overview. For a detailed technical perspective, consult the Federal Highway Administration’s guidance on mechanically stabilized earth walls, which covers drainage best practices in depth. This level of engineering insight is crucial for ensuring that a wall is designed not just for static soil loads but also for the dynamic, often destructive, forces of water. For best practices specific to the popular segmental retaining walls (SRWs) used in residential settings, the National Concrete Masonry Association maintains comprehensive resources.

How freeze–thaw magnifies risk in Essex County:

• Water in soil and hairline cracks expands on freezing, wedging apart block faces and joints.
• Spring thaws saturate soils, briefly raising groundwater levels and load.
• Repetition compounds damage. Even minor distress can become structural if pressure is not relieved.

Drainage safeguards more than your wall:

• Protects adjacent patios and walks by preventing subgrade saturation. If you’re planning hardscape improvements, consider integrating drainage early with our patio design and installation services so your new surfaces remain stable and dry.
• Directs water away from foundations, reducing moisture issues in basements and crawlspaces. For broader site needs, our comprehensive hardscaping and masonry services include grading, swales, and downspout routing.

Independent consumer resources also stress the cost of inadequate drainage and the benefits of doing it right: see this overview of how proper drainage prevents retaining wall damage and cost overruns.

Bottom line: Even a 2-foot wall needs drainage. The water doesn’t care how tall the wall is—if it’s holding back soil, the pressure will build. A simple French drain at the base coupled with a gravel backfill column is the most reliable way to protect the structure and your property.

Anatomy of an Effective System: The Key Components

An effective drainage system intercepts, collects, filters, and moves water away before it can build pressure. The right materials, in the right order, make all the difference.

Image metadata: Context—component overview for a retaining wall French drain; Subject—4-inch perforated pipe (socked), non-woven geotextile filter fabric, angular crushed stone; Purpose—illustrates materials used in subsurface drainage; Format—JPEG; Resolution—web-optimized.

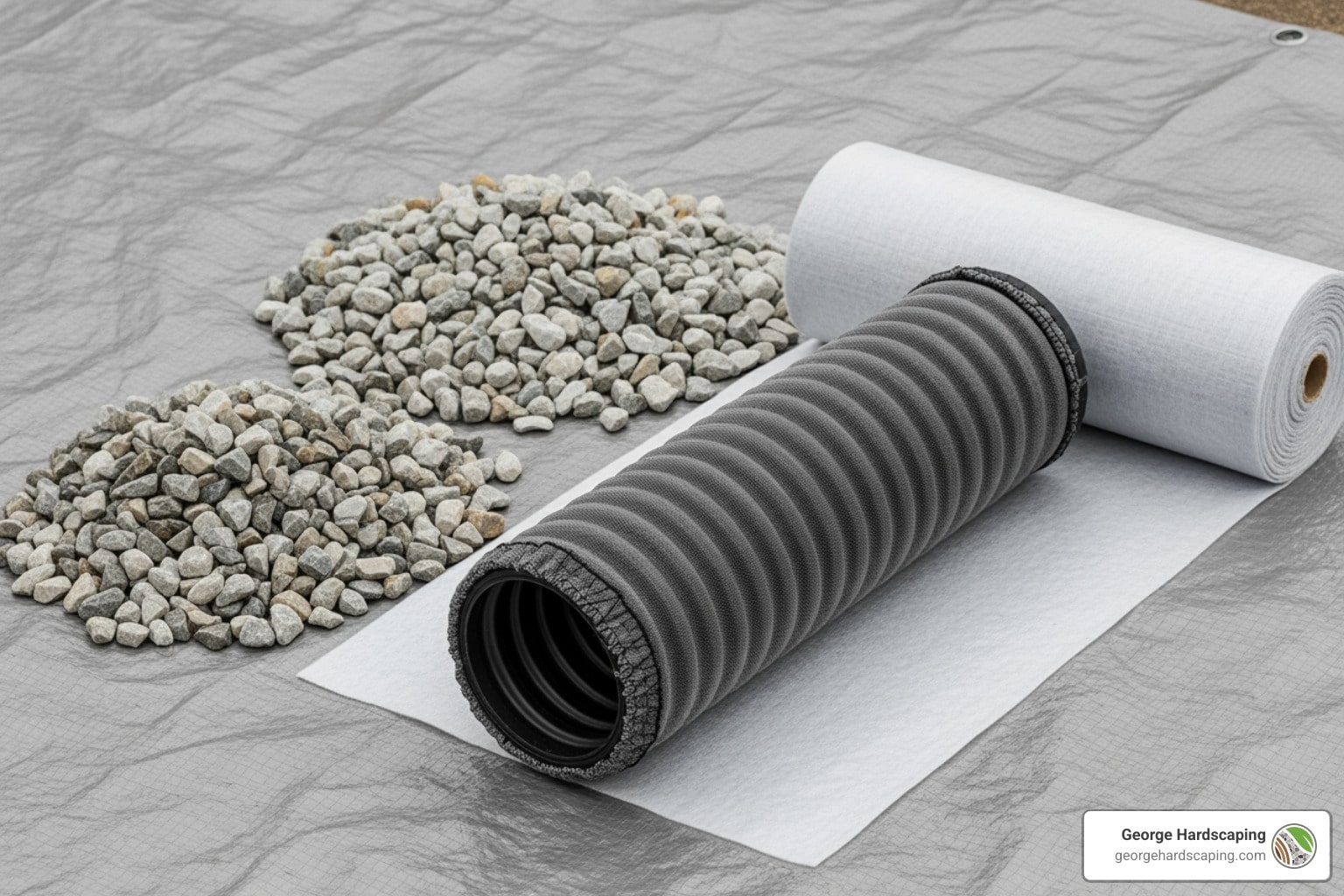

Key components for your retaining wall and French drain:

• Perforated collector pipe: Typically 4-inch diameter. For durability and flow capacity, smooth-wall SDR-35 or Schedule 40 is preferred in many installations; high-quality corrugated with compatible fittings is acceptable when properly bedded. The pipe sits at or slightly below the wall base elevation so it can intercept water at the lowest point.
• Non-woven geotextile filter fabric: A needle-punched, non-woven fabric placed between soil and the drainage aggregate to prevent fines migration. Look for fabrics meeting subsurface drainage criteria similar to AASHTO M 288 drainage applications, with adequate flow rate and permittivity. For a deeper dive into performance properties, see the Federal Highway Administration’s geosynthetic guidance.
• Clean, angular gravel: 1/2–3/4-inch crushed stone is ideal. Angular particles interlock for stability while leaving high void space for water flow. Place a minimum 12-inch (wider is better) gravel column directly behind the wall from the base up toward grade.
• Solid discharge line: Connects to the collector and carries water to a daylight outlet, dry well, or storm system. This line should be non-perforated to avoid reintroducing water into soils along the route.

Why these choices matter:

• Fabric prevents clogging: Soil fines migrate toward flowing water. Without a filter, fines infiltrate the gravel, reducing porosity and flow. A non-woven geotextile resists clogging better than woven for this application due to higher permittivity and more tortuous flow paths. ASTM and AASHTO criteria guide selection; the key is balancing filtration (keeping soil out) with transmissivity (letting water through).
• Pipe orientation: Place perforations down. With perforations facing downward, water enters the pipe through the gravel as the trench fills from the bottom up, while sediment tends to settle below pipe invert. This orientation also helps maintain a self-draining bed of stone beneath the pipe.
• Gravel gradation: Using consistently sized, washed, angular stone maximizes voids and resists settlement. Avoid rounded pea gravel (less interlock) and fines-containing “crusher run” (clogs quickly). Filter criteria used in geotechnical practice—such as the U.S. Army Corps of Engineers seepage control guidance—explain why properly sized granular filters are essential to long-term performance.

Common retaining wall drainage techniques and where they fit:

• Gravel backfill column: The 12-inch drainage zone is non-negotiable, establishing a continuous pathway to the pipe. For taller walls, increase thickness to improve collection.
• Weep holes: Small openings at the base of solid walls can act as a pressure relief. They should be combined with gravel and fabric inside the wall backfill zone to prevent weep-hole clogging.
• Drainage composite/board: Against waterproofed concrete walls, a dimpled drainage composite can rapidly convey water down to the collector pipe while protecting waterproofing. Building science resources explain how drainage planes keep structures dry by decoupling soil moisture from wall surfaces.

Optional but valuable features:

• Cleanouts: Vertical risers with caps at strategic intervals allow jetting and inspection of the collector line.
• Air gaps and rodent guards: Protect outlets and prevent small animals from nesting in pipes.
• Sump and pump (when no gravity outlet exists): A small basin with an ejector pump lifts water to a higher discharge point when the site doesn’t allow daylighting.

Need help selecting the right fabric, pipe, and aggregate for your soil type? Our team designs systems for clay-rich, loamy, and sandy soils across the North Shore. Start with a tailored plan here: landscape retaining walls.

Step-by-Step Guide: Installing a Retaining Wall and French Drain System

A reliable retaining wall and French drain system is built methodically. Attention to the base elevation, slope, outlet, and soil interfaces will determine how well the system performs over decades.

Step 1: Excavation and Trenching

• Locate the trench: Excavate directly behind the wall’s base, on the retained-soil side. The bottom of the trench should be at or slightly below the wall base to collect water at the lowest point.
• Dimensions: Typical residential installations use a trench 12–18 inches wide. Depth is controlled by the base elevation and frost considerations.
• Set the slope: Establish at least a 1% slope (1 inch of fall every 8 feet) toward the outlet. Use a taut string line and level or a laser to confirm grade. Minimal slopes work because subsurface flows are modest; excessive slopes can cause erosion within the trench.
• Plan the outlet: Identify a lower-elevation discharge that is safe and legal—daylighting on a slope, a dry well with overflow, or an approved storm connection. In Massachusetts, building and environmental regulations can apply; see the Massachusetts State Building Code overview for permit and structural triggers.

Step 2: Laying the Foundation

• Fabric first: Line the trench with non-woven geotextile filter fabric, leaving enough overlap to wrap over the top later. Extend fabric up the wall back to separate soil from the drainage zone.
• Gravel bedding: Place 2–3 inches of clean, angular gravel as a stable bed. Level and check slope again.
• Set the pipe: Lay the 4-inch perforated pipe with holes facing down. Use sweep fittings, not sharp elbows, to maintain hydraulic efficiency. Confirm continuous slope to the outlet.

Image metadata: Context—installation cross-section; Subject—retaining wall, 12-inch gravel backfill, perforated collector pipe, non-woven geotextile wrap, soil backfill; Purpose—shows correct sequence and interfaces; Format—JPEG; Resolution—web-optimized.

Step 3: Assembling the Drain

• Build the drainage core: Place clean angular gravel around and above the pipe, forming a 12-inch minimum gravel column directly behind the wall. For taller walls or very wet soils, widen the column to improve collection.
• Wrap the “burrito”: Fold the geotextile over the top of the gravel, overlapping edges generously. This encapsulation keeps soil fines out of the drain over time.
• Transition to solid discharge: At the low point, couple to a solid, non-perforated discharge line. Maintain positive slope to the outlet.
• Add cleanouts: Where possible, include vertical cleanouts at ends or bends for future maintenance.

Step 4: Backfilling and Finishing

• Soil backfill in lifts: Place soil behind the wrapped gravel in 6–8 inch lifts, compacting each lift with appropriate equipment. Avoid over-compaction directly against the wall face—follow manufacturer guidance for segmental units.
• Surface grading: Final grade should slope away from the wall to route surface water elsewhere. Maintain a shallow swale above the wall to intercept runoff where needed.
• Protect the outlet: Install a rodent guard and splash pad or riprap to prevent erosion. Make sure the outlet is at least a few inches above grade so it remains visible and clear.

Special considerations for New England climates

• Frost depth: Bury discharge lines below the local frost depth (typically 48 inches in much of Massachusetts) where feasible to prevent ice blockage. Where shallow burial is unavoidable due to site constraints, using insulated pipe or ensuring a steeper pitch can mitigate freezing risks. Understanding your specific microclimate is key. The NOAA regional climate normals provide historical temperature and precipitation data that can help assess local freeze-thaw potential and inform a more resilient design.
• Waterproofing and drainage composites: For poured concrete walls, consider a waterproofing membrane and drainage board to decouple soil moisture and speed vertical flow to the collector.
• Stormwater compliance: Discharge locations must avoid erosion and nuisance on neighboring properties. The EPA’s stormwater best management practices summarize safe conveyance and infiltration options.

When gravity won’t cooperate

• Use a sump and pump: Where a positive gravity outlet is impossible, install a small basin with a reliable pump and check valve. Include an overflow route and a backup power strategy if the wall protects critical areas.

Permits and engineering

• Permit triggers: Many jurisdictions require permits or engineering for walls above a threshold height (often 4 feet measured from bottom of footing) or when supporting surcharges like driveways or slopes. Drainage details are standard in engineered plans.
• Soil and load conditions: Complex sites with clay lenses, seepage, or steep slopes benefit from a geotechnical review. Proper drainage is part of a larger stability strategy.

Looking for turnkey installation that meets code and performs for the long haul? Our team designs, builds, and warrants complete systems: landscape retaining walls and integrated hardscaping and masonry services.

Strong CTA: Book your on-site consultation now to get a code-compliant, engineered drainage plan and fixed-cost proposal: request an estimate.

Troubleshooting and Best Practices

Even well-built systems need periodic checks. Early detection and maintenance keep your retaining wall and French drain functioning for decades.

What to watch for after storms:

• Outlet not flowing: If the discharge doesn’t run briefly after a significant rain, suspect a blockage in the pipe or a frozen outlet in winter.
• Soggy soils behind/above the wall: Persistent saturation indicates the gravel column or fabric may be clogged or the outlet is submerged.
• Wall distress: New bulges, lean, or cracking mean pressure is building. Address immediately.

Maintenance essentials:

• Keep outlets clear: This is the most critical and easiest maintenance task. At least twice a year (spring and fall), inspect the discharge outlet. Clear away any grass, leaves, mulch, or debris that could obstruct flow. Ensure the rodent guard is intact. After a heavy rain, a quick visual check to confirm water is flowing freely is a great habit.
• Flush via cleanouts: If your system was installed with vertical cleanout ports, you can perform preventative flushing. Once every few years, use a garden hose with a jet nozzle or a professional drain jetter to flush any accumulated silt or sediment out of the collector pipe. This keeps the pipe’s capacity at its maximum.
• Manage surface water: The French drain is for subsurface water. Don’t make its job harder. Ensure the final grade at the top of the wall slopes away from it. Avoid directing downspouts or sump pump discharge toward the backfilled area. If the wall is at the bottom of a large slope, a shallow swale or curtain drain installed several feet upslope can intercept surface runoff before it ever reaches the wall’s drainage system.

Retrofitting drainage behind existing walls:

• Carefully excavate a narrow trench at the base of the wall to install a collector line and gravel column. Shoring may be required to prevent collapse during work, especially in saturated soils.
• Add weep holes to solid walls: For concrete or masonry walls without relief, core-drill weep holes at the base aligned with gravel-filled pockets behind the wall, separated from native soil with geotextile to prevent clogging.
• Tie-in options: Where a gravity outlet isn’t available, consider a compact dry well with overflow or a sump/pump solution.

Best practices for long-term reliability:

• Use non-woven geotextile as a separator wherever soil meets drainage aggregate.
• Choose angular, washed stone and avoid fines. Verify 12-inch minimum thickness for the drainage column.
• Maintain a continuous positive slope in the collector and discharge.
• Protect against frost: Bury or insulate discharge lines, and keep outlets above grade and unobstructed.

Different wall materials, different nuances (all still need drainage):

• Wood/timber walls: Highly susceptible to decay when wet. Emphasize a wide gravel column, excellent separation with fabric, and generous airflow at the face. Keep grade off the back of timbers to reduce trapped moisture.
• Segmental concrete block (SRW): Ensure proper base prep, compaction, and geogrid reinforcement where specified. Drainage must be continuous across the entire length of the wall.
• Poured concrete walls: Combine waterproofing, drainage composite, and French drain. Weep holes can provide backup pressure relief where appropriate.

To better understand the science at play, you can explore the USGS primer on groundwater movement, which explains how water travels through soil. For practical, step-by-step guidance on French drain layout and maintenance from an unbiased source, university extension services offer excellent resources, such as this guide to French drain fundamentals from the University of Minnesota.

If you suspect your system is underperforming or your wall shows any movement, do not wait. A prompt assessment can prevent costly rebuilds. Get a professional evaluation for your North Shore property: request an estimate.

Frequently Asked Questions about Retaining Wall Drainage

How deep should the gravel behind a retaining wall be?

• The drainage backfill should be at least 12 inches thick immediately behind the wall from base to near grade. Taller walls or wetter soils benefit from a 16–24 inch drainage zone to speed collection and reduce pressure.

Does even a short retaining wall need a drain?

• Yes. Any wall retaining soil faces water pressure. A French drain and gravel backfill protect even low walls from frost heave, bulging, and premature deterioration.

What is the ideal slope for a French drain?

• A 1% grade is a widely accepted standard (1 inch drop every 8 feet). This is sufficient to move water by gravity without causing internal erosion. Ensure the outlet is lower than the collector and remains free and clear.

Should the pipe holes face up or down?

• Down. With perforations down, water fills the trench from the bottom and enters the pipe while sediment settles below invert. Combined with a non-woven fabric wrap and clean stone, this orientation resists clogging over time. Professional guidance for segmental walls aligns with this approach.

Do I need a fabric “sock” on the pipe if I already use geotextile around the gravel?

• The surrounding non-woven geotextile typically provides the primary filtration. A pipe sock can add redundancy in fine soils, but it’s not a substitute for the fabric that separates the entire gravel column from native soil.

Corrugated or smooth-wall pipe?

• Smooth-wall (e.g., SDR-35) tends to offer better hydraulic performance and is easier to jet/clean. Quality corrugated pipe is acceptable when properly supported by gravel and used with compatible fittings.

Can I tie downspouts into the French drain?

• It’s better to keep roof runoff separate and routed by solid pipe to a safe discharge. Mixing roof runoff with the subsurface collector can overload the French drain and introduce debris that leads to clogs. For overall site planning, the EPA’s stormwater BMP library outlines options to manage both roof and subsurface flows safely.

What if I have heavy clay soil?

• Clay slows infiltration and increases the duration of saturation. Increase the width of the gravel column, use high-permittivity non-woven geotextile, and ensure a robust, sloped discharge. Consider adding a shallow swale above the wall to intercept surface runoff before it reaches the backfill.

Do weep holes eliminate the need for a French drain?

• No. Weep holes relieve some pressure but can clog without a proper gravel and fabric filter behind them. A collector pipe and gravel column remain the backbone of reliable drainage.

Is geogrid the same as drainage?

• No, they serve two different but complementary functions. Geogrid is a soil reinforcement material—a strong, flexible mesh that is layered within the compacted soil behind a wall to create a stable, unified soil mass. It mechanically holds the soil together, preventing it from failing internally. Drainage, on the other hand, relieves hydrostatic pressure by removing water. An engineered wall often requires both: geogrid for soil stability and a French drain for water management. As the FHWA’s wall guidance discusses, these systems work together to ensure long-term structural integrity.

What about building permits and inspections?

• Many jurisdictions require permits and may require engineered drawings for walls over a certain height or with surcharges. The Massachusetts State Building Code governs these triggers. Drainage is a standard plan component for permitted walls.

How much does a French drain behind a retaining wall cost?

• Costs vary significantly based on several factors: the length and height of the wall, site accessibility for excavation equipment, the type of soil (heavy clay is more difficult to work with), and the complexity of the discharge outlet (a simple daylight outlet is cheaper than a dry well or sump pump system). While it adds to the upfront project cost, think of it as an insurance policy. The cost of adding a proper drainage system during construction is a fraction of the cost of excavating and rebuilding a failed wall. A professionally installed French drain might add 15-30% to the total cost of the retaining wall project, but it protects 100% of your investment from the most common cause of failure. For a precise, fixed-cost proposal tailored to your property, it is essential to have an on-site evaluation: request an estimate.

How long does installation take?

• A typical residential French drain installation behind a new wall is completed as part of the wall build over several days. Retrofitting behind an existing wall can take longer due to careful excavation and stabilization steps.

Can I discharge near property lines or onto the sidewalk/street?

• Discharging where it causes erosion or nuisance is typically prohibited. Always direct water to approved locations and consult local regulations or conservation authorities. Stormwater best practices and local codes should be followed to avoid violations and neighbor impacts.

Where can I learn more about filter fabrics and performance?

• FHWA geosynthetic guidance and the U.S. Army Corps seepage manual provide in-depth, authoritative information on filter selection and drain design (FHWA geosynthetic guidelines; USACE seepage control).

Want a retaining wall and drainage system designed for your specific soils and site? Explore our start-to-finish approach to landscape retaining walls and integrated patio design services.

Conclusion: Secure Your Landscape for the Long Haul

The partnership between a retaining wall and French drain isn’t optional—it’s the foundation of a durable, low-maintenance landscape. Hydrostatic pressure, saturated soils, and freeze–thaw cycles can defeat even a well-built wall if water has no place to go. The solution is straightforward: a properly sized gravel backfill, a non-woven geotextile filter, and a sloped collector line to a safe discharge.

Investing in drainage protects your wall, your hardscapes, and your home’s value. It prevents the structural failures you can see—and the hidden damage you can’t.

Strong CTA: Ready to make your wall last? Get a professional design and installation that meets code and handles Essex County’s toughest weather. Book your consultation now: request an estimate.

Prefer turnkey service that integrates design, permitting, wall construction, and drainage? Explore our complete capabilities here: hardscaping and masonry services and specialized landscape retaining walls.
